Memory segmentation is a technique used by computer systems to divide the memory into different segments, each with specific characteristics and functions. This concept is crucial when dealing with lower-level programming languages like C, which provide direct access to memory. Memory segmentation allows programs to optimize memory usage, maintain program structure, and support more efficient memory management.
In this article, we will explore the concept of memory segmentation in C, its components, and how memory is managed during program execution.
What is Memory Segmentation?
Memory segmentation refers to the division of memory into distinct segments or sections, each having a specific role in a running program. In a typical computer system, the memory is divided into several regions, and these regions are used to store different types of data such as the program code, static variables, stack, and heap.
In C programming, memory segmentation is particularly important because it enables more efficient handling of different data types and ensures that each segment is utilized correctly during the program’s execution. Memory segmentation can also improve performance and security by providing isolation between different types of data.
Components of Memory Segmentation

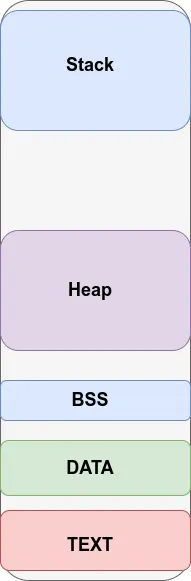

In C, the memory used by a program is divided into several distinct sections. These sections correspond to different parts of the program and are typically as follows:
Text Segment (Code Segment)
- The text segment is where the compiled code of the program resides. This segment is typically read-only to prevent accidental modification of the program instructions while running.
- It stores the machine code instructions that the CPU executes during program execution.
- This segment is often marked as non-writable to protect the integrity of the code.
Data Segment
- The data segment is used to store global and static variables that are initialized by the programmer. These variables retain their values throughout the execution of the program.
- The data segment is usually divided into two sections:
- Initialized Data Segment: Contains variables initialized with specific values.
- Uninitialized Data Segment (BSS): Contains variables that are declared but not explicitly initialized. These variables are automatically initialized to zero when the program starts.
Heap Segment
- The heap segment is used for dynamic memory allocation, which is done at runtime using functions like malloc(), calloc(), and realloc().
- The memory in the heap grows or shrinks as required during the execution of the program. It is used for storing objects whose sizes are determined during the program’s runtime.
- Memory management in the heap is done manually (e.g., using free() to release memory when it’s no longer needed), which makes it more flexible but also prone to memory leaks and fragmentation if not managed properly.
Stack Segment
- The stack segment is used for storing function call frames, local variables, and control information. It grows and shrinks as functions are called and return.
- When a function is called, a “stack frame” is created, which contains local variables, function arguments, and the return address (the point in the program where control should return after the function finishes).
- The stack is usually managed automatically by the operating system, but it has a limited size, and excessive use (such as too many nested function calls or too large local variables) can cause a “stack overflow.”
How Memory Segmentation Works in C
When you write a C program and compile it, the operating system and the C runtime environment allocate and organize the memory based on these segments. Here’s how the different segments come into play:
Loading the Program: When a C program is executed, the operating system loads the compiled executable into memory. The program is divided into the different segments we described earlier (text, data, heap, stack), and each of these segments is mapped to specific memory addresses.
Memory Allocation:
- Text Segment: The machine code instructions are loaded into the text segment and are typically placed in a read-only section of memory.
- Data Segment: Global and static variables are allocated in the data segment. These variables are initialized to the values provided by the programmer or default values (in the case of the BSS section).
- Heap: During runtime, the program can request memory from the heap as needed using dynamic memory allocation functions like malloc() or calloc(). This memory can be freed using free().
- Stack: When a function is called, its local variables and function call information (return address, parameters) are pushed onto the stack. The stack grows and shrinks as functions are called and return.
Memory Management:The operating system manages the allocation and deallocation of memory in the heap and stack segments. While the stack is automatically managed (you don’t need to explicitly allocate or free memory), the heap requires manual management by the programmer. Failure to free memory in the heap leads to memory leaks, while excessive memory use on the stack can result in stack overflow.
Example of Memory Segmentation in C
Here’s a simple C program demonstrating the different memory segments:
#include <stdio.h>
#include <stdlib.h>
// Data segment
int globalVar = 10;
void function() {
// Local variable in stack
int localVar = 20;
printf("Local variable: %d\n", localVar);
}
int main() {
// Local variable in stack
int mainVar = 30;
static int staticVar = 30; // Data segment
// Dynamically allocate memory in heap
int* ptr = (int*) malloc(sizeof(int));
*ptr = 40;
printf("Global variable: %d\n", globalVar);
printf("Main function variable: %d\n", mainVar);
printf("Dynamically allocated variable: %d\n", *ptr);
printf("Static Variable: %d\n", staticVar);
function();
// Free the dynamically allocated memory
free(ptr);
return 0;
}
Conclusion
Memory segmentation is a crucial concept in C programming, helping to structure memory in a way that allows efficient data storage and access. Understanding how different memory segments work (such as the text, data, stack, and heap) enables programmers to write more efficient and safe programs. By managing memory effectively, especially when using dynamic memory allocation, you can avoid common pitfalls like memory leaks and stack overflows. Proper knowledge of memory segmentation is essential for anyone working with low-level languages like C.
